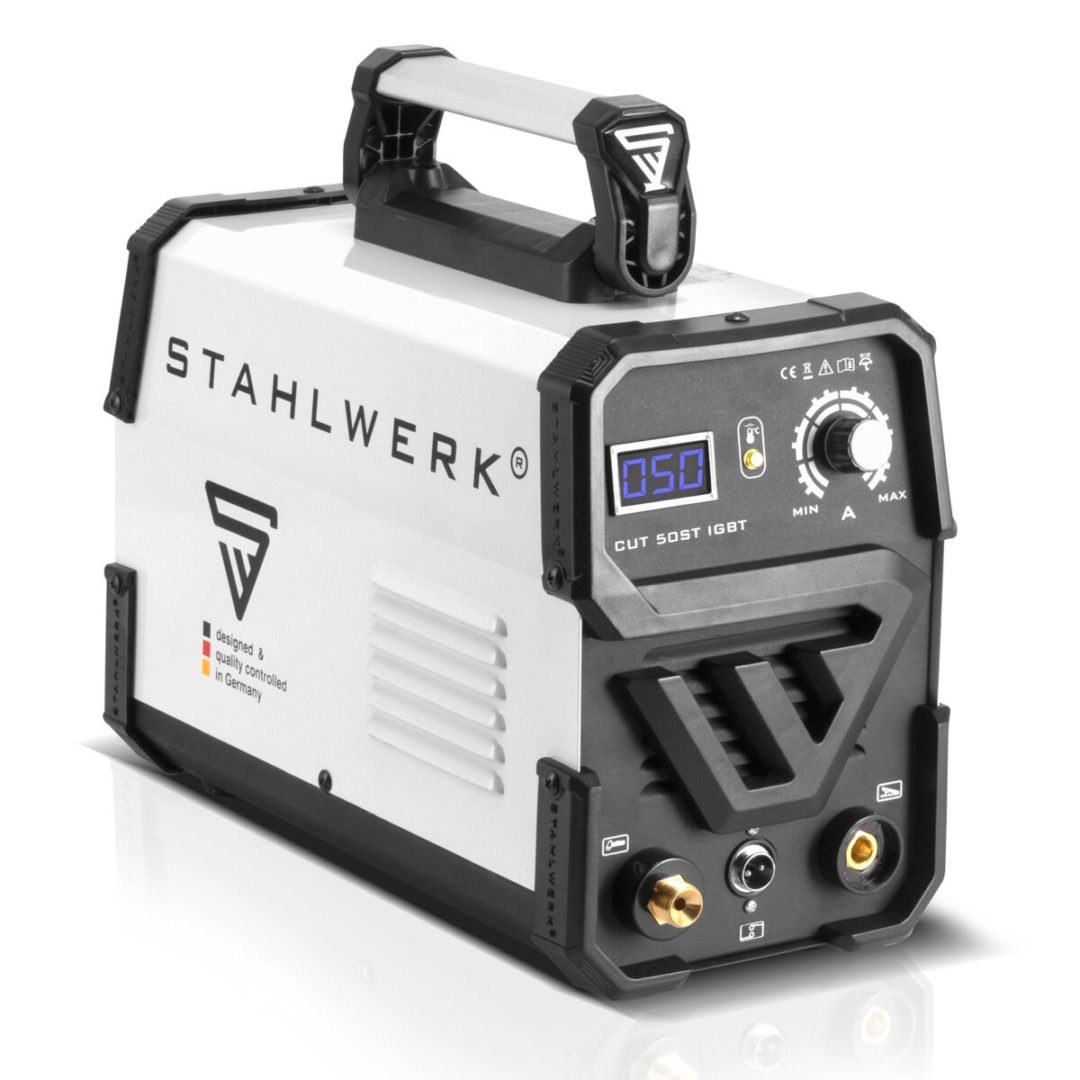

STAHLWERK plasma cutter CUT 50 ST IGBT | plasma cutting machine with 50 A and HF contact ignition

The powerful STAHLWERK plasma cutter CUT 50 ST IGBT  delivers a powerful 50 amps and has a precise high frequency (HF) contact ignition for first-class ignition behavior.

The cutting performance is up to 14 mm depending on the material (structural steel ST37 up to 14 mm, V2A or V4A up to 8 mm, aluminum up to 5 mm).

In addition to the common conductive metals, the plasma cutter is also suitable for painted sheet metal and rust. The cutting current can be continuously adjusted from 15 to 50 amps.

The compact device has smart cooling and overheating protection and is easy to transport at just 7.2 kg.

The STAHLWERK plasma cutter CUT 50 ST IGBT is delivered with an extensive accessories package.

Device functions & components

• Plasma / CUT – Electricity is used to generate a plasma jet that melts the material, which is then removed using compressed air. This makes it easy to precisely cut all conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and many more.
• Cutting thickness – Depending on the material, cutting thicknesses of up to 14 mm are possible. Structural steel ST37 up to 14 mm, V2A or V4A up to 8 mm, aluminum up to 5 mm.
• Contact ignition – high frequency (HF) contact ignition for first-class ignition behavior.

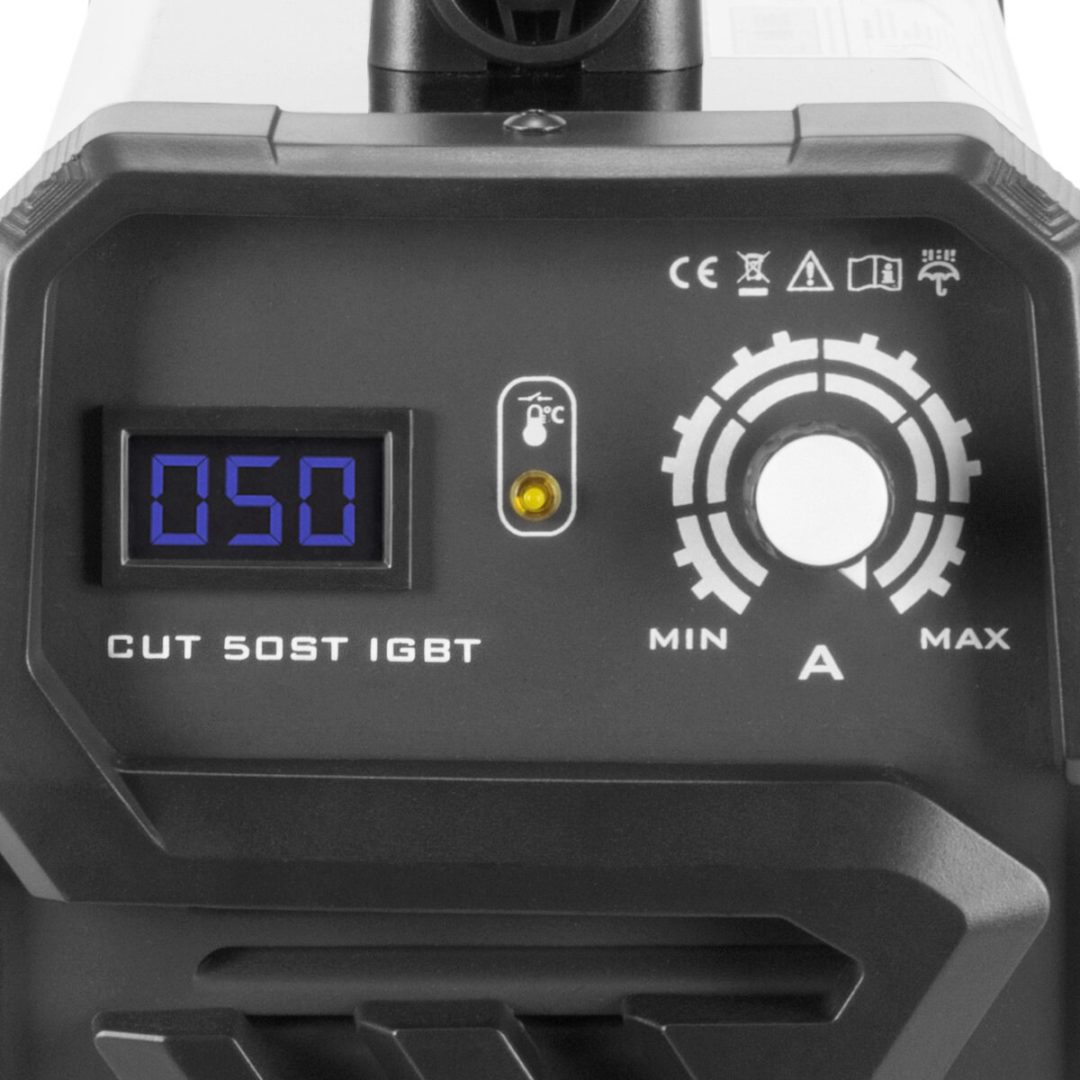

• Cutting current – Continuous adjustment from 15 to 50 A.
• Air after-flow – After the cutting process has been completed, air automatically flows to cool the torch and reduce wear on the nozzle and electrode.

Device features & benefits of the Stahlwerk plasma cutter CUT 50 ST

• IGBT technology – The latest and most modern transistor technology enables high performance when welding! No transformer, no MOSFET, the most modern IGBT!

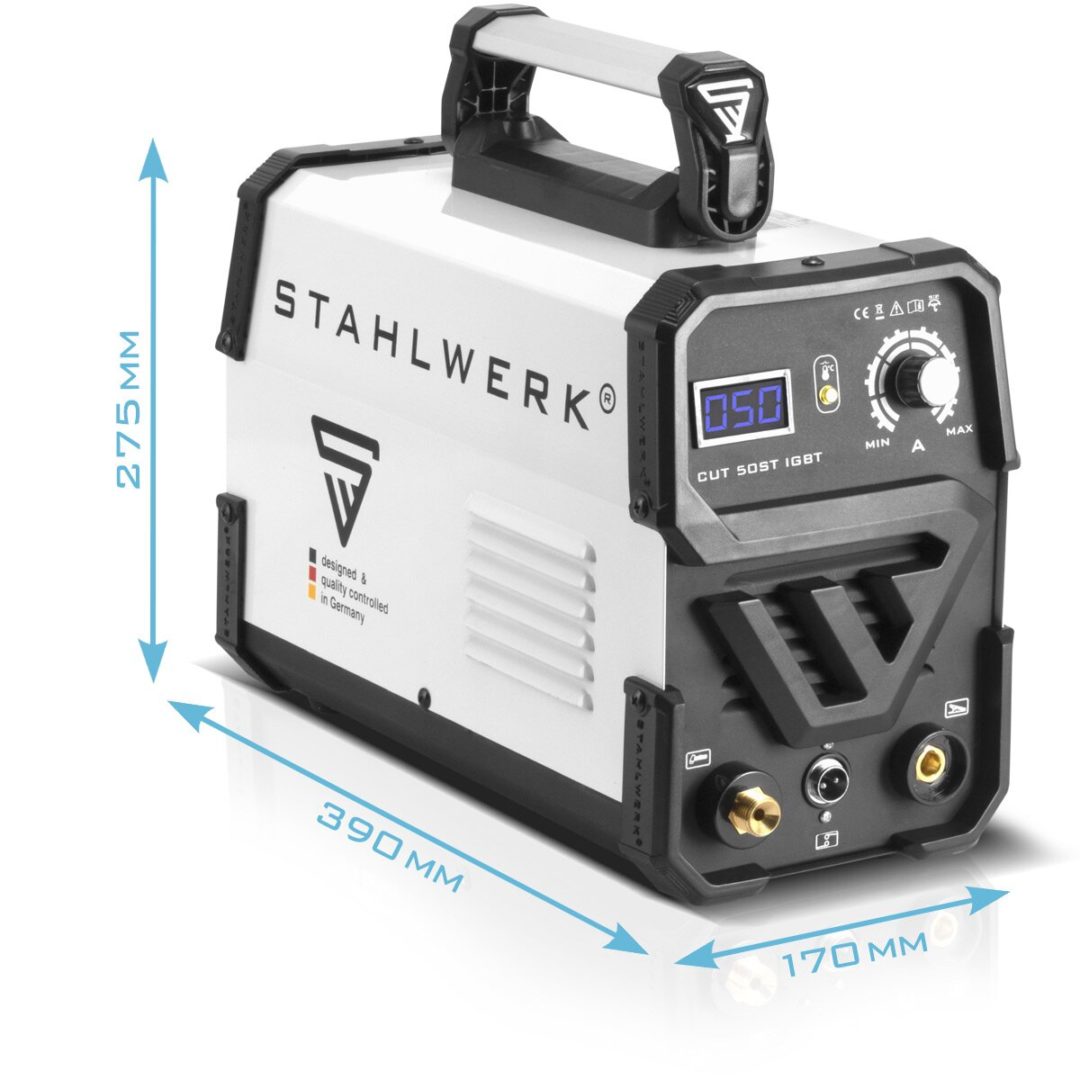

• Lightweight & compact design – Weighing just 7.2 kg and measuring 390 x 170 x 275 mm, the device is ideal for cutting work anywhere. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carrying!
• Highest efficiency & performance – Single-phase alternating current (230 V) supplies the device and allows an output power of a real 50 amps.
• Smart cooling & overheating protection – State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum performance.

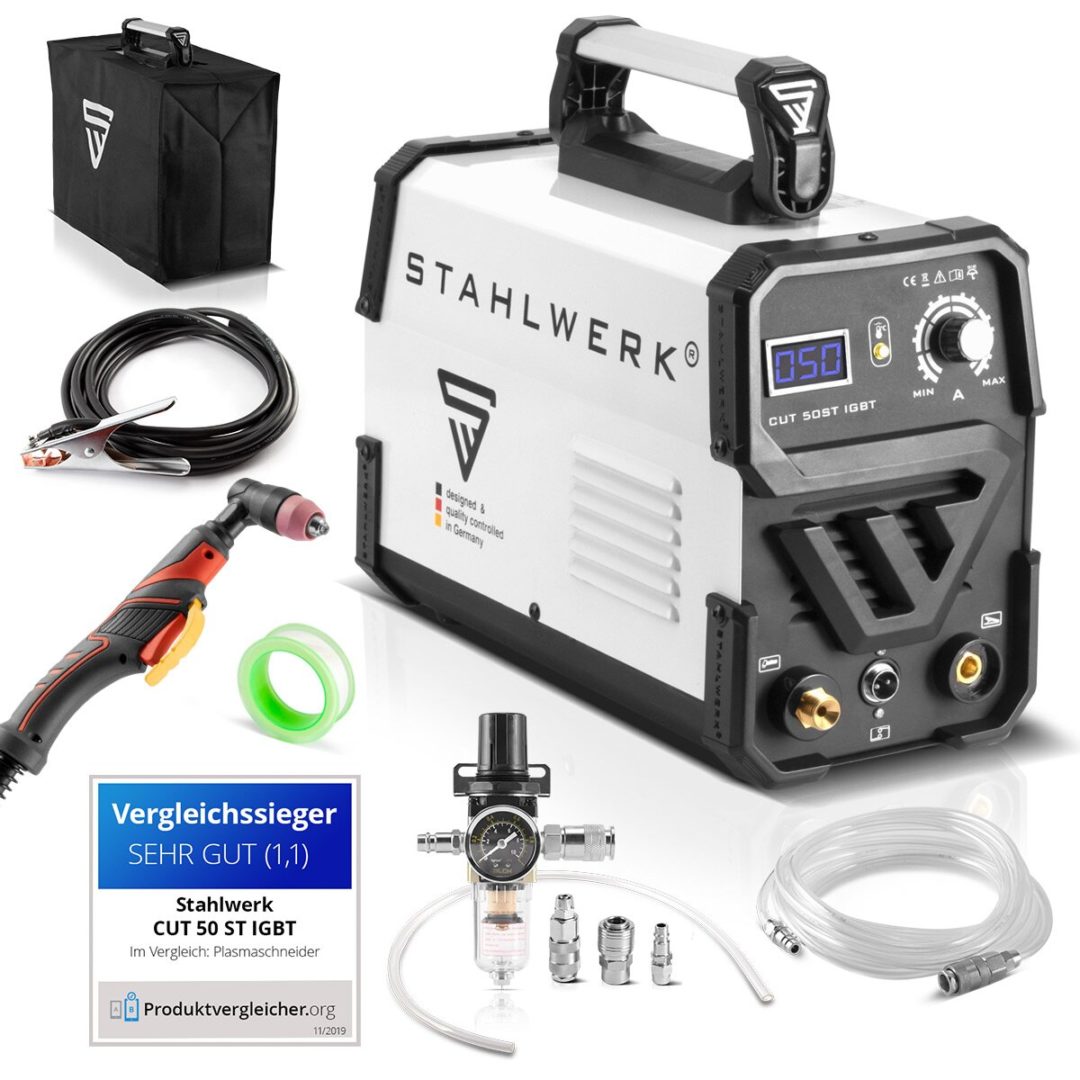

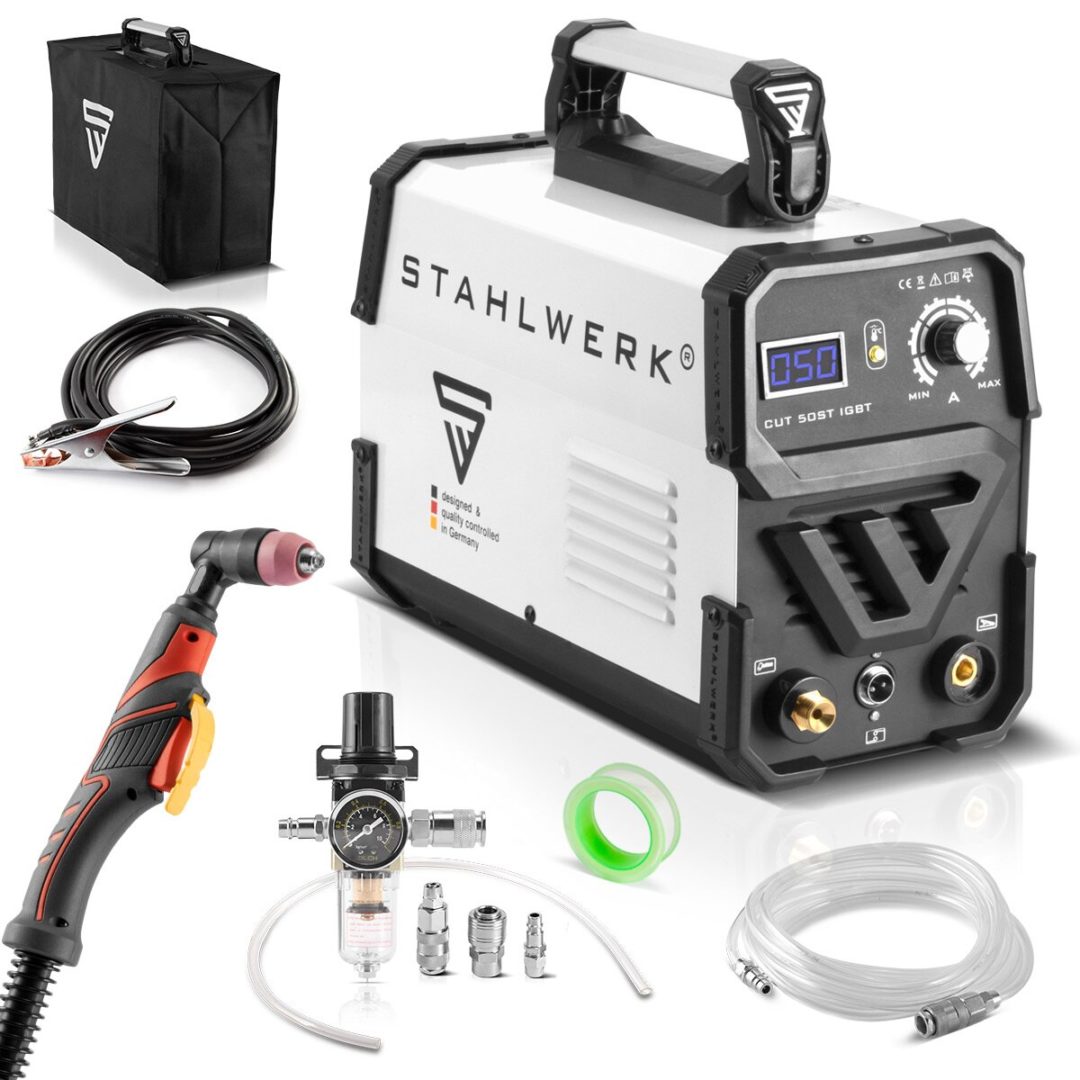

What comes in the STAHLWERK plasma cutter CUT 50 ST Box?

• 1 x The device plasma cutter STAHLWERK plasma cutter CUT 50 ST

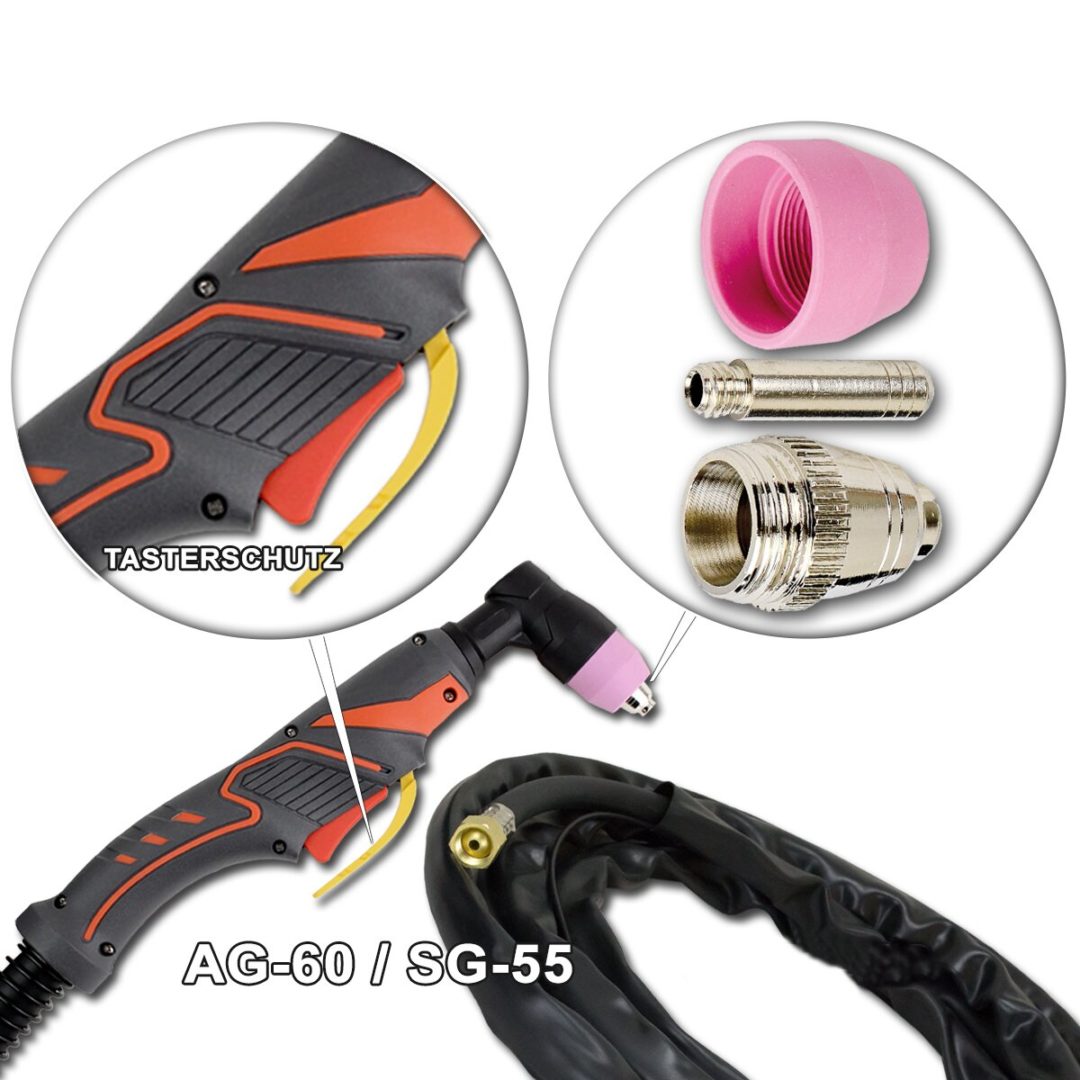

• 1 x professional plasma hose package AG-60/SG-55, 3 meters
• 1 x plasma accessory set 3-piece (this is already pre-assembled on the plasma torch):
  • 1 x plasma nozzle
  • 1 x plasma electrode
  • 1 x ceramic cap
• 1 x ground cable 3 meters
• 1 x water separator with pressure gauge and snap-on quick couplings
• 1 x connecting hose with snap-on quick couplings from the device to the water separator, including 6-piece connection set
• 1 x air connection hose with snap-on quick coupling 5m
• 1 x protective cover
• 1 x Teflon tape
